| Обозначение |
ØD, мм |
b, мм |
a, мм |
L, мм |
Хвостовик |

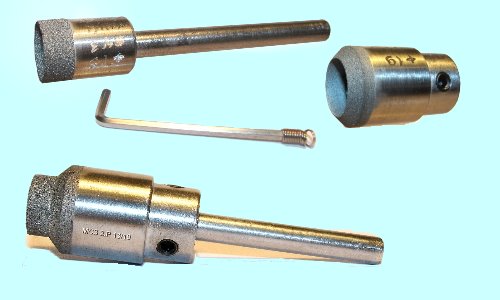

| Регулируемые МСЗ |
| МСЗ 1.Р-4/10* |
4,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 2.Р-5/11 |
5,0 |
0,8 |
3,0 |
75,0 |
Ø6,0 |
| МСЗ 1.Р-5/11 |
5,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-5/11* |
5,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 2.Р-6/12 |
6,0 |
0,8 |
3,0 |
75,0 |
Ø6,0 |
| МСЗ 3.Р-6/12 |
6,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-6/12 |
6,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-6/12* |
6,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 2.Р-7/12 |
7,0 |
0,8 |
2,5 |
60,0 |
Ø7,0 |
| МСЗ 1.Р-7/13 |
7,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-7/13* |
7,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-7/13 |
7,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 3.Р-8/14 |
8,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-8/14 |
8,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-8/14* |
8,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 2.Р-8/14 |
8,0 |
0,8 |
3,0 |
75,0 |
Ø6,0 |
| МСЗ 1.Р-9/15* |
9,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 2.Р-9/15 |
9,0 |
0,8 |
3,0 |
75,0 |
Ø6,0 |
| МСЗ 3.Р-9/15 |
9,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 3.Р-10/16 |
10,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-10/16* |
10,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ1.Р-11/17 |
11,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ1.Р-11/17* |
11,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-11/17 |
11,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-12/18 |
12,0 |
0,8 |
3,0 |
75 |
G1/2-А |
| МСЗ1.Р-12/18* |
12,0 |
0,8 |
3,0 |
93 |
G1/2-А |
| МСЗ 3.Р-12/18 |
12,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 2.Р-12/19 |
12,0 |
0,8 |
3,5 |
75,0 |
Ø6,0 |
| МСЗ 1.Р-12,7/19 |
12,7 |
0,8 |
3,15 |
75,0 |
G1/2-А |
| МСЗ 2.Р-13/19 |
13,0 |
0,8 |
3,0 |
75,0 |
Ø6,0 |
| МСЗ 1.Р-13/19 |
13,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-13/19* |
13,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-13/19 |
13,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-14/20 |
14,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-14/20* |
14,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-14/20 |
14,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-15/21 |
15,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-15/21* |
15,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-16/22 |
16,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-16/22* |
16,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-16/22 |
16,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-17/23 |
17,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-17/23* |
17,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-18/24* |
18,0 |
0,8 |
3,0 |
93 |
G1/2-A |
| МСЗ 3.Р-18/24 |
18,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-19/25* |
19,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-20/26 |
20,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-20/26* |
20,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-20/26 |
20,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-21/27 |
21,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-21/27* |
21,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-21/27 |
21,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-22/28 |
22,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-22/28* |
22,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-22/28 |
22,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-23/29* |
23,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-23/29 |
23,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-24/30* |
24,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-24/30 |
24,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-25/31 |
25,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-25/31* |
25,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 2.Р-26/32 |
26,0 |
0,8 |
3,0 |
60,0 |
Ø10,0 |
| МСЗ 1.Р-26/32 |
26,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 3.Р-26/32 |
26,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-27/33* |
27,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-28/34 |
28,0 |
0,8 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-28/34* |
28,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-28/34 |
28,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-29/35* |
29,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-30/36* |
30,0 |
0,8 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-30/36 |
30,0 |
0,8 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-31/37* |
31,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-32/38* |
32,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-32/38 |
32,0 |
1,0 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-33/39* |
33,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-34/40* |
34,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-35/41 |
35,0 |
1,0 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-35/41* |
35,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-36/42* |
36,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-37/43 |
37,0 |
1,0 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-37/43* |
37,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-38/44 |
38,0 |
1,0 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-38/44* |
38,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-39/45* |
39,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-40/46* |
40,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-40/46 |
40,0 |
1,0 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-41/47* |
41,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-42/48 |
42,0 |
1,0 |
3,0 |
75,0 |
G1/2-A |
| МСЗ 1.Р-42/48* |
42,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-43/49* |
43,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-44/50* |
44,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 3.Р-45/46 |
45,0 |
1,0 |
3,0 |
116,0 |
Ø16,0 (для станков с чпу) |
| МСЗ 1.Р-61/67* |
61,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
| МСЗ 1.Р-62/68* |
62,0 |
1,0 |
3,0 |
93,0 |
G1/2-A |
